• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28022

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• 43

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

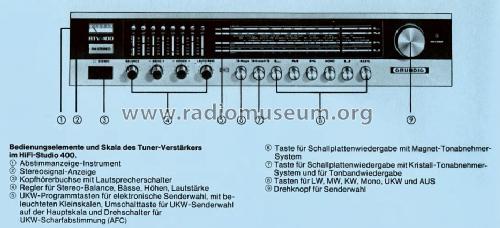

• Model: HiFi-Studio 400 [Palisander] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1060 x 680 x 400 mm / 41.7 x 26.8 x 15.7 inch

• Notes
• Rundfunk-Chassis = RTV400, Ausgangsleistung: 2× 20 W (Sinus);
  Phono-Chassis = Dual 1215 mit Magnetsystem Shure M71M-B.

• Price in first year of sale
• 1,710.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
