• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1969–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28024

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• 53

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

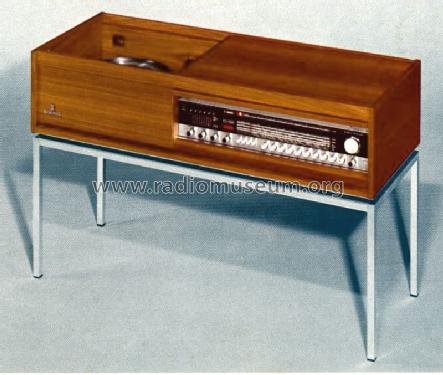

• Model: HiFi-Studio 650 [Teak] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1060 x 680 x 400 mm / 41.7 x 26.8 x 15.7 inch

• Notes
• Rundfunk-Chassis = RTV650, Ausgangsleistung: 2× 20 W (Sinus);
  Phono-Chassis = Dual 1219 mit Magnetsystem Shure M91MG-D.
  Gehäuse in Teak oder Palisander.

• Price in first year of sale
• 2,260.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
