• Year
  • 1977/1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 124495
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

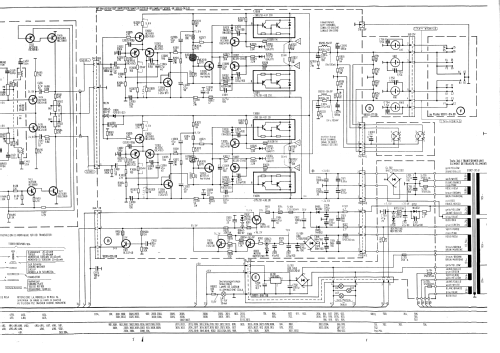

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 110-130; 220-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org
  • Model: HiFi-Studio RPC400 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 690 x 200 x 430 mm / 27.2 x 7.9 x 16.9 inch
  • Notes
  • Ausgangsleistung: 2× 30 W (Sinus). Stereo-Automatic-IC-Decoder.
    Phono-Chassis = Dual 1239G mit Magnet-System Shure DM95G;
    HiFi-Cassetten-Deck Grundig CB230

  • Mentioned in
  • Handbuch RFP 1977/78 S.173
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
