Hit-Boy 310; Grundig Radio- (ID = 83742) Radio
Grundig Radio-: Hit-Boy 310 [Radio] ID = 83742 760x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hit-Boy 310, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977/1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SC1417 2SC1417 2SC1417 2SC1417 2SC1417 2SC1417 2SB561 2SC1390 2SC1390 2SB561 2SD467 CDG24 1N60
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 / C: 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Hit-Boy 310 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 130 x 55 mm / 9.1 x 5.1 x 2.2 inch
Notes

Wavebands:
LW  145 - 260 kHz
MW  510 - 1620 kHz
FM   87,5 - 108 MHz.
FM-IF with additional ceramic filter.
Connection of an external loudspeaker or earphone, 3.5 mm. socket.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data Handbuch VDRG 1977/1978

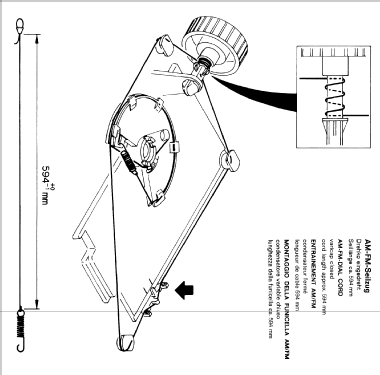

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
