Kopfhörer GDHS 219

Kopfhörer GDHS 219; Grundig Radio- (ID = 2068687) Speaker-P
Use red slider bar for more.
Kopfhörer GDHS 219; Grundig Radio- (ID = 2068687) Speaker-P
Grundig Radio-: Kopfhörer GDHS 219 [Speaker-P] ID = 2068687 1375x877
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kopfhörer GDHS 219, Grundig (Radio-Vertrieb, RVF, Radiowerke):

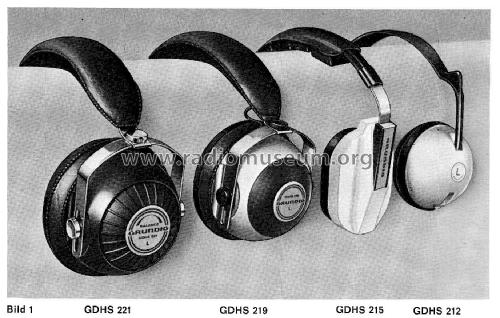

Aus Grundig TI 6/1974 Seite 434

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - Is a Headphone or Earphone
Power out 0.1 W (undistorted)
from Radiomuseum.org Model: Kopfhörer GDHS 219 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Notes

Übertragungsbereich: 20...20000 Hz; Empfindlichkeit: >95 Phon; Impedanz: 400 Ω;   Klirrfaktor: 0,5 %; Kabellänge: 2,5 m steckbar; Steckeranschluß: DIN 45327 (Würfelstecker)

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Mentioned in - - Manufacturers Literature (Grundig Technische Informationen 6/1974)

Model page created by Michael Mehnert. See "Data change" for further contributors.
