Stereo-Konzertschrank KS460 Ch= HF30 Nussbaum
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 24855
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

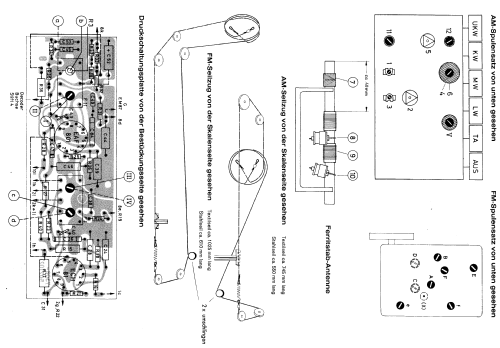

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo-Konzertschrank KS460 Ch= HF30 [Nussbaum] - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1350 x 810 x 450 mm / 53.1 x 31.9 x 17.7 inch
- Notes
- Rundfunk-Chassis = HF30; Stereo-Decoder 4 oder 5 nachrüstbar; NF-Verstärker mit 2 Endstufen je 8 W;
Phono-Chassis = Dual 1008.
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Price in first year of sale
- 1,340.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
