• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25764

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EM87 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

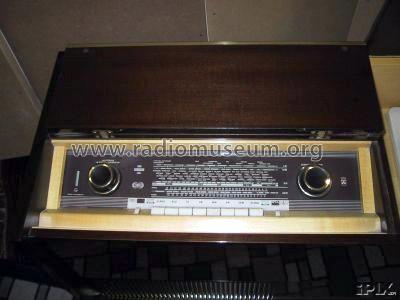

• Model: KS530 [poliert] - Grundig Radio-Vertrieb, RVF,

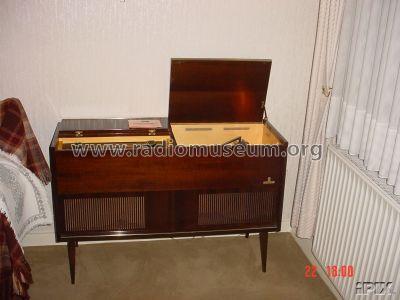

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1010 x 730 x 390 mm / 39.8 x 28.7 x 15.4 inch

• Notes
• Rundfunk-Chassis = HF50a, Stereo-Decoder 4 oder 5 nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 4 W;
  Phono-Chassis = AG1025.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 1,020.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
