Grundig Radio-: KS570 [Radio] ID = 48686 933x699

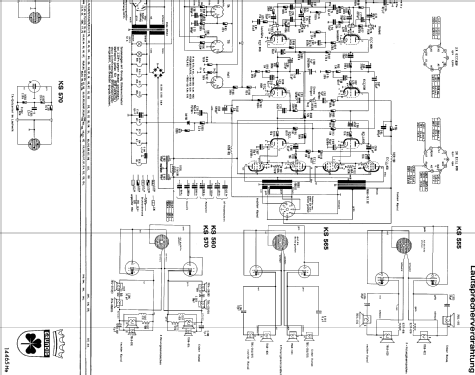

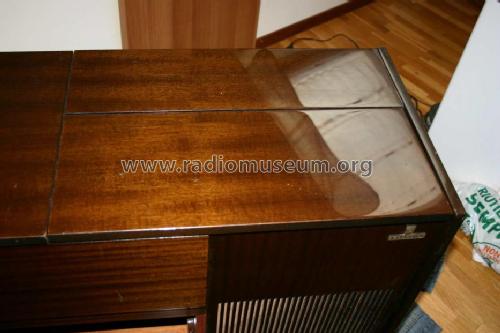

Select picture or schematic to display from thumbnails on the right and click for download.
For model KS570 Nussb/Teak, Grundig (Radio-Vertrieb, RVF, Radiowerke):
ECC85, ECH81, EAF801, 2 x ECC808, 2 x ECLL800, EM87

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EAF801 ECC808 EM87 ECC808 ECLL800 ECLL800
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker 7 or more Loudspeakers
Power out
from Radiomuseum.org Model: KS570 [Nussb/Teak] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1390 x 800 x 390 mm / 54.7 x 31.5 x 15.4 inch
Notes Rundfunk-Chassis = HF35 jedoch Ferritantenne abschaltbar; Stereo-Decoder 4 oder 5 nachrüstbar, Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 2 W;je Kanal 1 ovaler Tieftöner 31 x 19,5 cm, 2 dyn.Mitteltöner 11,5 cm und 1 dyn.Hochtöner 6 cm.
Phono-Chassis = AG1025
Net weight (2.2 lb = 1 kg) 60 kg / 132 lb 2.5 oz (132.159 lb)
Price in first year of sale 1'500.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
