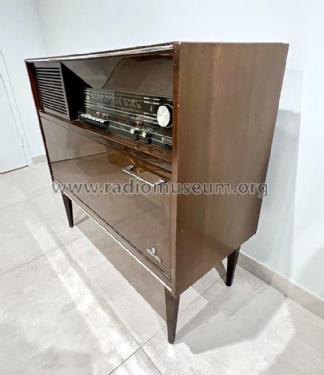

Grundig Radio-: KS702 [Radio] ID = 1106222 640x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model KS702, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1967–1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF185 BF184 BF194 BF195 BF238 BF237 BC148 BC181 AC117 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: KS702 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 850 x 800 x 370 mm / 33.5 x 31.5 x 14.6 inch
Notes Rundfunk-Chassis = RF152;
Phono-Chassis = Philips AG1035 mit Kristallsystem AG3306.
Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
External source of data erb
Source of data Handbuch VDRG 1967/1968
