Stereo Console KS742U Solid State Ch=CS250U+NF200U

Stereo Console KS742U Solid State Ch=CS250U+NF200U; Grundig Radio- (ID = 106284) Radio Stereo Console KS742U Solid State Ch=CS250U+NF200U; Grundig Radio- (ID = 106285) Radio

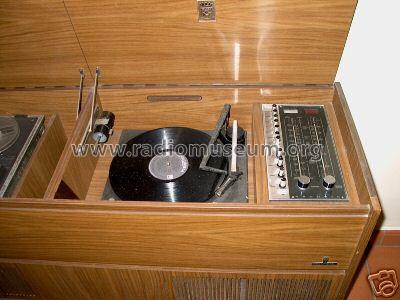

Stereo Console KS742U Solid State Ch=CS250U+NF200U; Grundig Radio- (ID = 106286) Radio Stereo Console KS742U Solid State Ch=CS250U+NF200U; Grundig Radio- (ID = 2246358) Radio
Use red slider bar for more.
Stereo Console KS742U Solid State Ch=CS250U+NF200U; Grundig Radio- (ID = 106284) Radio
Grundig Radio-: Stereo Console KS742U Solid State Ch=CS250U+NF200U [Radio] ID = 106284 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Console KS742U Solid State Ch=CS250U+NF200U, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); Export model
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 60 Hz: 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Stereo Console KS742U Solid State Ch=CS250U+NF200U - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

US export model.

Tuner chassis = CS 250 b/U
Amplifier chassis = NF 200/U
Record changer = Automatic 36

It's currently unknown if a tape recorder was built into this console ex factory.

Source of data - - Manufacturers Literature

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
