• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27361

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

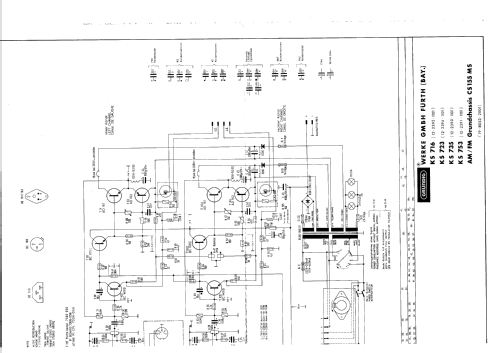

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

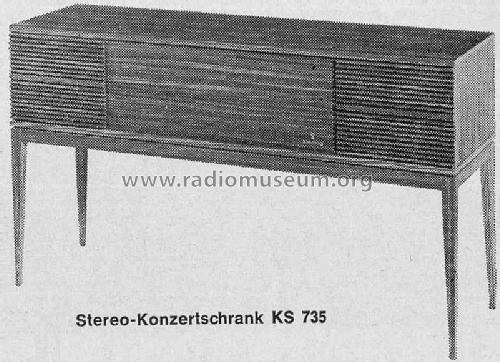

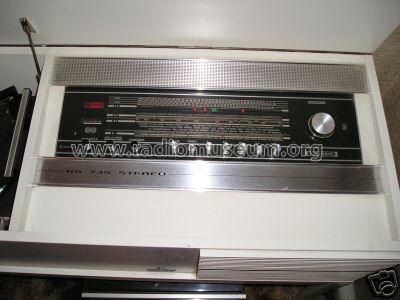

• Model: KS735 Ch= CS155MS - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1300 x 710 x 370 mm / 51.2 x 28 x 14.6 inch

• Notes

• Rundfunk-Chassis = Stereomeister 155; Vollstereo, NF-Verstärker mit zwei Endstufen je 5 W;
  Phono-Chassis = Automatic 36 mit Kristallsystem 22GP310.

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969

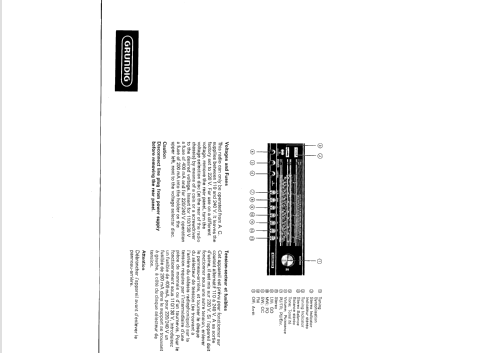

• Literature/Schematics (1)
• -- Original-techn. papers.
