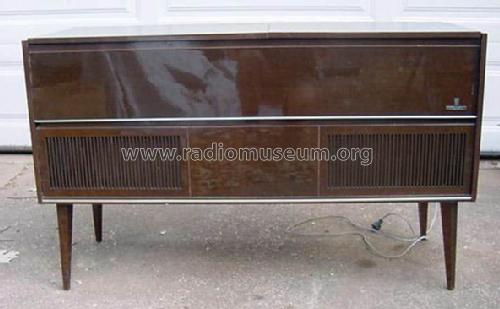

Stereo-Konzertschrank KS742 Ch= RF270 Plattenwechsler Automatic 36
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27635
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

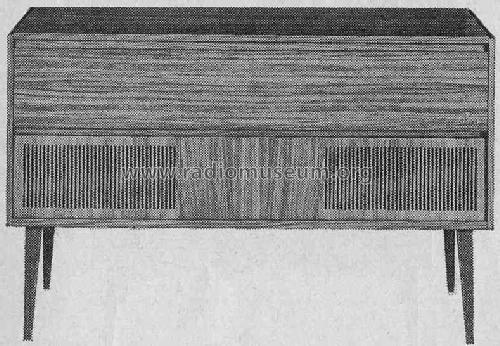

Handbuch VDRG 1969/70, S. D7
- Number of Transistors
- 15
- Semiconductors
- AF106 BF243 BF237 BF237 BF237 BF238 BF238 BC149 BC149 BC108 BC108 AD161 AD162 AD161 AD162 1N60 AA113 AA113 AA119 B30C350
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo-Konzertschrank KS742 Ch= RF270 [Plattenwechsler Automatic 36] - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1230 x 750 x 420 mm / 48.4 x 29.5 x 16.5 inch
- Notes
-
Rundfunk-Chassis = RF270,vorbereitet für Einbau des Stereo-Decoder 8;
NF-Verstärker mit 2 Endstufen je 4 W.
Phono-Chassis = Grundig Automatic 36 mit Kristallsystem 22GP310.
Siehe auch KS742 mit Philips Plattenwechsler AG1035.
- Net weight (2.2 lb = 1 kg)
- 53 kg / 116 lb 11.8 oz (116.74 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
- Mentioned in
- Handbuch RFP 1969/70 (Thiele, Helmstedt)
- Literature/Schematics (1)
- -- Original-techn. papers.
