• Year
  • 1969–1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27636
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

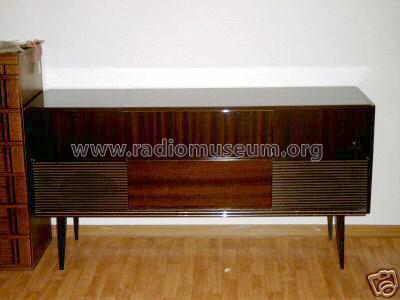

  • Model: KS754 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1450 x 750 x 430 mm / 57.1 x 29.5 x 16.9 inch
  • Notes
  • Rundfunk-Chassis = RTV340, Stereo-Decoder 10 eingebaut, Ausgangsleistung: 2× 4 W;
    Phono-Chassis = Grundig Automatic 36 mit Kristallsystem 22GP200.
    Gehäuse: Nussbaum, mitteldunkel hochglanzpoliert oder hell mattiert.
  • Net weight (2.2 lb = 1 kg)
  • 52 kg / 114 lb 8.6 oz (114.537 lb)
  • External source of data
  • erb
