• Year
  • 1970–1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27948
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

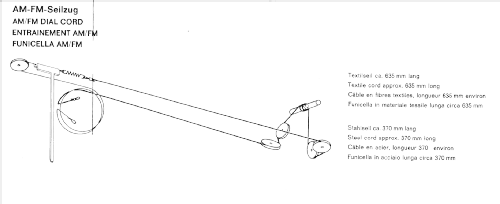

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 45
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     15 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: KS793 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1840 x 760 x 440 mm / 72.4 x 29.9 x 17.3 inch
  • Notes
  • Rundfunk-Chassis = HF550, NF-Ausgangsleistung: 2× 10 W (Sinus);
    Phono-Chassis = Dual 1212 mit Magnetsystem Shure M71M-B.
  • Net weight (2.2 lb = 1 kg)
  • 87 kg / 191 lb 10.1 oz (191.63 lb)
  • External source of data
  • Erb
