• Year
  • 1971–1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28682
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

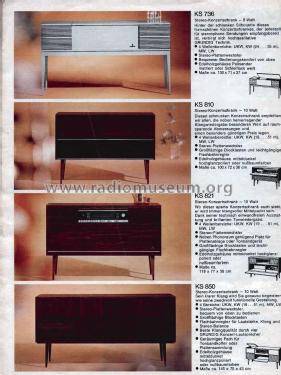

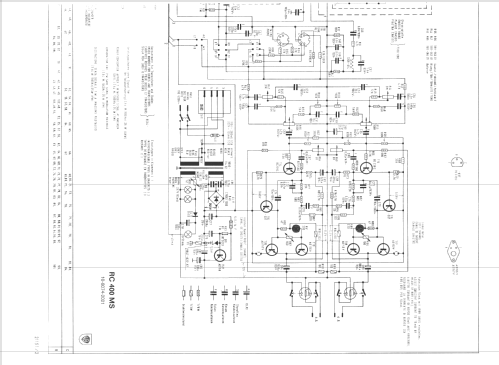

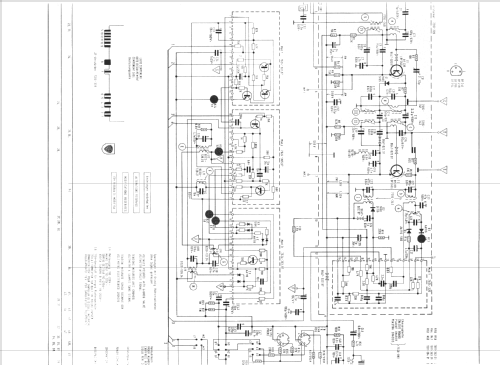

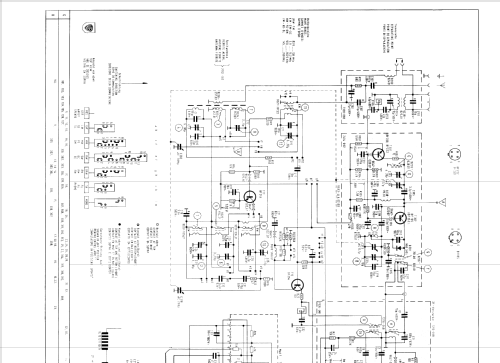

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: KS821 Ch= RC400 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1180 x 770 x 380 mm / 46.5 x 30.3 x 15 inch
  • Notes
  • Rundfunk-Chassis = RC400;
    Stereo-NF-Verstärker mit 2 Endstufen je 5 W;
    Phono-Chassis = Automatik 60 mit Keramiksystem.

  • Net weight (2.2 lb = 1 kg)
  • 40 kg / 88 lb 1.7 oz (88.106 lb)
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
