Kugelbox L/U18

Kugelbox L/U18; Grundig Radio- (ID = 2072714) Speaker-P

Kugelbox L/U18; Grundig Radio- (ID = 2072715) Speaker-P
Kugelbox L/U18; Grundig Radio- (ID = 2483845) Speaker-P
Use red slider bar for more.

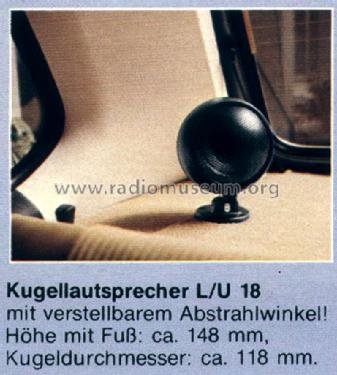

Kugelbox L/U18; Grundig Radio- (ID = 2483845) Speaker-P
Grundig Radio-: Kugelbox L/U18 [Speaker-P] ID = 2483845 800x888
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kugelbox L/U18, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Q: Grundig Revue '75

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1975 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 6 W (10 W max.)
from Radiomuseum.org Model: Kugelbox L/U18 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Notes

Kugelbox zur Montage im Auto. Anschlussleitung mit 4,5 m Länge und Winkelstecker nach DIN 41529.

Mentioned in - - Manufacturers Literature (Grundig Technische Informationen 4/1975)

Model page created by Michael Mehnert. See "Data change" for further contributors.
