Lautsprecher-Box 13

Lautsprecher-Box 13; Grundig Radio- (ID = 1474405) Speaker-P Lautsprecher-Box 13; Grundig Radio- (ID = 225982) Speaker-P
Lautsprecher-Box 13; Grundig Radio- (ID = 1474406) Speaker-P Lautsprecher-Box 13; Grundig Radio- (ID = 1474408) Speaker-P
Lautsprecher-Box 13; Grundig Radio- (ID = 1474409) Speaker-P Lautsprecher-Box 13; Grundig Radio- (ID = 1474411) Speaker-P
Lautsprecher-Box 13; Grundig Radio- (ID = 1474412) Speaker-P Lautsprecher-Box 13; Grundig Radio- (ID = 1474414) Speaker-P

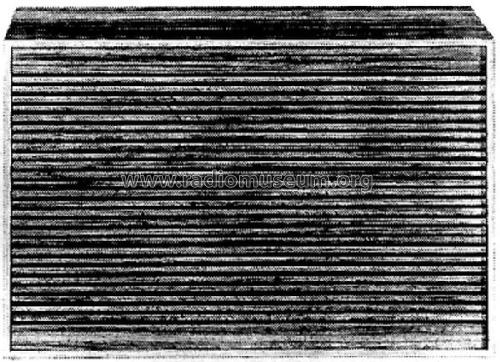

Lautsprecher-Box 13; Grundig Radio- (ID = 1474416) Speaker-P Lautsprecher-Box 13; Grundig Radio- (ID = 1547245) Speaker-P
Use red slider bar for more.
Lautsprecher-Box 13; Grundig Radio- (ID = 1474405) Speaker-P
Grundig Radio-: Lautsprecher-Box 13 [Speaker-P] ID = 1474405 933x409
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Box 13, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966–1970 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Lautsprecher-Box 13 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 300 x 190 x 110 mm / 11.8 x 7.5 x 4.3 inch
Notes Impedanz 5 Ohm, 10 Watt, Frequenzbereich 70 Hz bis 12,5 kHz, Gehäuse hell gemasert (nussbaumähnlich).
Price in first year of sale 65.00 DM
Source of data -- Original prospect or advert

Model page created by Lars Brötje. See "Data change" for further contributors.
