- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1994 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230763
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

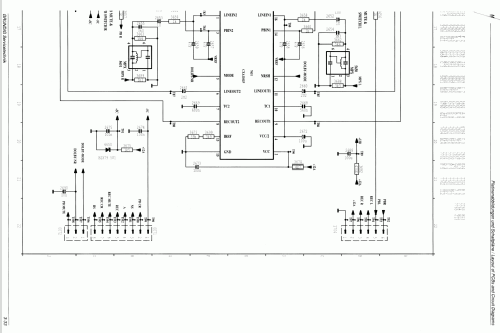

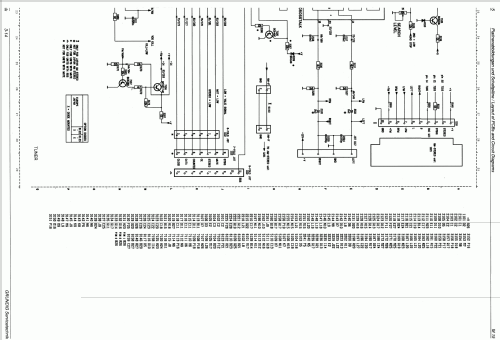

Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (unknown quality)
- from Radiomuseum.org
- Model: M 15 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 600 x 309.5 x 290.5 mm / 23.6 x 12.2 x 11.4 inch
- Notes
-
Kompaktanlage mit CD-Spieler, Kassetten-Doppeldeck und Radioteil. 2 Lautsprecherboxen mit 6 Ohm im Lieferumfang enthalten.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
