- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1995 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230849
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

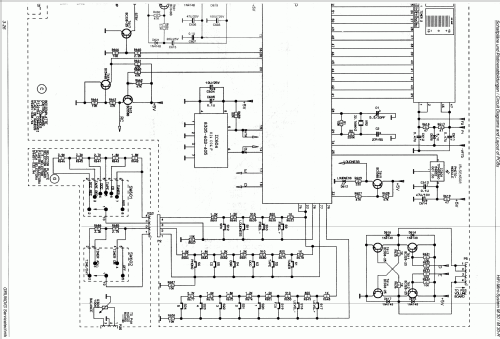

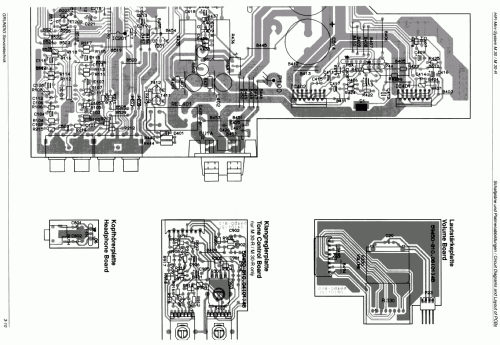

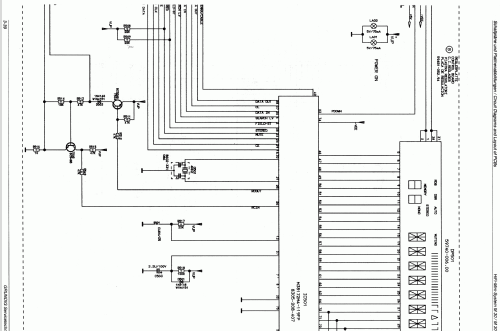

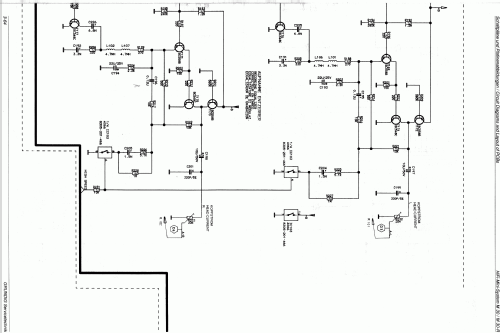

Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes; Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (160 W max.)
- from Radiomuseum.org
- Model: M 30 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-

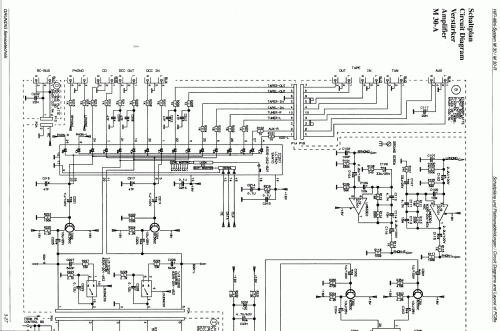

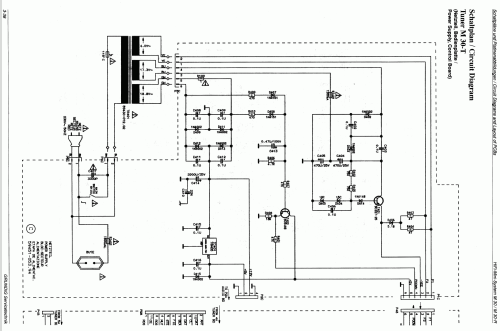

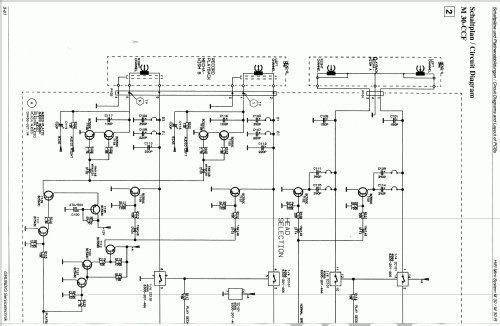

Kompaktanlage, bestehend aus folgenden Einzelgeräten: M30-A Vollverstärker, M 30-T Tuner, M 30-CD CD-Spieler, M 30-CCF Doppeldeck.
2 Lautsprecherboxen werden mitgeliefert.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
