Magic boy 200

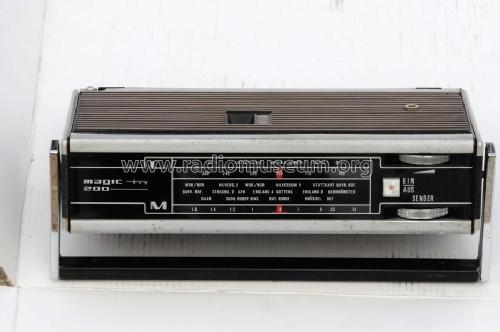

Magic boy 200; Grundig Radio- (ID = 1447131) Radio Magic boy 200; Grundig Radio- (ID = 1447132) Radio
Magic boy 200; Grundig Radio- (ID = 1862486) Radio Magic boy 200; Grundig Radio- (ID = 1862487) Radio
Magic boy 200; Grundig Radio- (ID = 1862490) Radio Magic boy 200; Grundig Radio- (ID = 1862491) Radio
Use red slider bar for more.
Magic boy 200; Grundig Radio- (ID = 1447131) Radio
Grundig Radio-: Magic boy 200 [Radio] ID = 1447131 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magic boy 200, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1971 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 BC148 BC559 AC127 AC188
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Magic boy 200 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 130 x 60 mm / 9.6 x 5.1 x 2.4 inch
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
