• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181879

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AQ8 6AJ8 6DA6 6BX6 EM34 or EM35 6AL5 6LD3 12AX7 6AB4 6BQ5 6BQ5

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110;220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Majestic 9078 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 58 x 33 x 18 inch / 1473 x 838 x 457 mm

• Literature/Schematics (1)

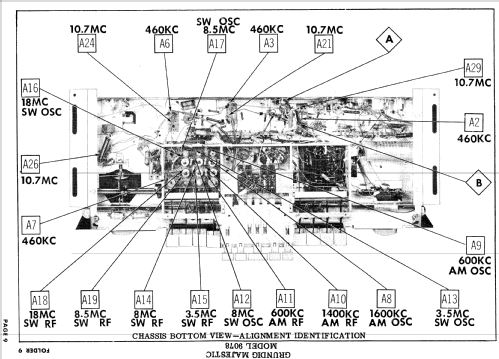

• Photofact Folder, Howard W. SAMS (Date 6-58, Set 401, Folder 9)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
