Majestic Crescendo Console 8050W/3D
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Paese
- Germania
- Produttore / Marca
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Anno
- 1956/1957
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 213782
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Numero di tubi
- 10
- Valvole
- Principio generale
- Supereterodina (in generale); Modello per l'esportazione
- Gamme d'onda
- Onde medie (OM), corte (OC) e FM.
- Particolarità
- Cambiadischi; Telecomando (con o senza filo)
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110-220 Volt
- Altoparlante
- 4 altoparlanti
- Potenza d'uscita
- 10 W (qualità ignota)
- Materiali
- Mobile in legno
- Radiomuseum.org
- Modello: Majestic Crescendo Console 8050W/3D - Grundig Radio-Vertrieb, RVF,
- Forma
- Console con tastiera/pulsantiera.
- Dimensioni (LxAxP)
- 28.5 x 33.5 x 16 inch / 724 x 851 x 406 mm
- Annotazioni

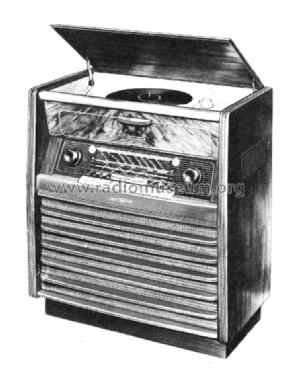

- The Grundig-Majestic folder from 1957 shows this AM-FM-Short Wave model Crescendo 8050 W/3D with automatic phonograph. It has one 10.5" round speaker, two 5" x 7" extended range speakers and one electrostatic tweeter.
Five level Multi-Sonic tone control system (see Grundig Wunschklang - Register in German), illuminated indicators, "Eagle-Eye" tuning. Connecting jacks for remote control Baton, external speaker Mystic Maestro, external speaker and phono. 3-speed automatic intermix record changer with magnetic cartridge built-in. Cabinet in Mahogany or medium Walnut.
A schematic is on record for the domestic version Musikschrank 8050.
Note: the domestic version has 9 tubes plus selenium rectifier. We don't know if the Majestic catalog is in error or if there are really 10 tubes used in the model.
- Fonte dei dati
- -- Original prospect or advert
- Altri modelli
-
In questo link sono elencati 6217 modelli, di cui 5449 con immagini e 4214 con schemi.
Elenco delle radio e altri apparecchi della Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collezioni
Il modello Majestic Crescendo Console fa parte delle collezioni dei seguenti membri.
Discussioni nel forum su questo modello: Grundig Radio-: Majestic Crescendo Console 8050W/3D
Argomenti: 1 | Articoli: 4
Could the tenth tube be for the pre-amp for the magnetic cartridge? Some kind of extra amplification must be needed if not the changer itself has ha preamp.
Gustav Bergström, 02.Sep.12
