For model Mandello 10 Ch= RC710MS, Grundig (Radio-Vertrieb, RVF, Radiowerke):
by courtesy of the owner

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1975–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: B30C100 BF414 AF306 BC308 BF255 BC239 BC239 BC338 TBA120 TCA440 TBA810 TBA810 TCA290 B40C1000
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Mandello 10 Ch= RC710MS - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1180 x 770 x 380 mm / 46.5 x 30.3 x 15 inch
Notes

Stereo-NF-Verstärker mit 2 Endstufen je 7,5 W;
Rundfunk-Chassis: RC710MS
Phono-Chassis = Automatik 51M (Philips 22GC051) mit Keramik-System 22GP214 oder 22GP215.

Skalenbeleuchtung 2x 12-15 V, 0,1 A.

Net weight (2.2 lb = 1 kg) 39 kg / 85 lb 14.4 oz (85.903 lb)
Source of data Handbuch VDRG 1976/1977

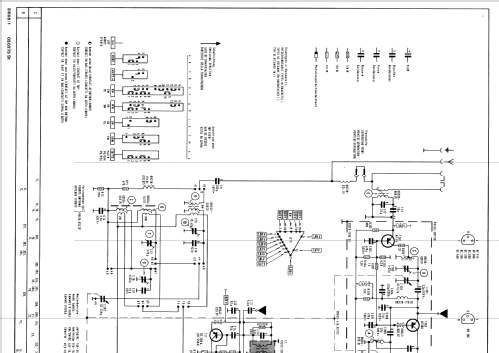

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
