Grundig Radio-: Mandello 3 Ch= CS160MS [Radio] ID = 1352181 900x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mandello 3 Ch= CS160MS, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21: BF222 or. BF314 BF185 or. BF255 BF195 BF194 BF238 BF237 BC149 or. BC239 BC149 or. BC239 BC181 BC181 AC187 AC188 AC187 AC188 AD162
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Mandello 3 Ch= CS160MS - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1180 x 800 x 380 mm / 46.5 x 31.5 x 15 inch
Notes

Das Standgerät Mandello 3 basiert auf dem Chassis CS160MS.
Mit oder ohne Stereo Decoder 10.

Eingebaut ist ein Stereo-Plattenwechsler Grundig Automatic 36,
Basis ist das Philips Phono-Chassis Typ 22GC036/55 für 110 V-Versorgung.

Tonkopf Philips 22GP300 mit umschaltbarer Nadel Micro/Normalrille

Mentioned in - - Manufacturers Literature

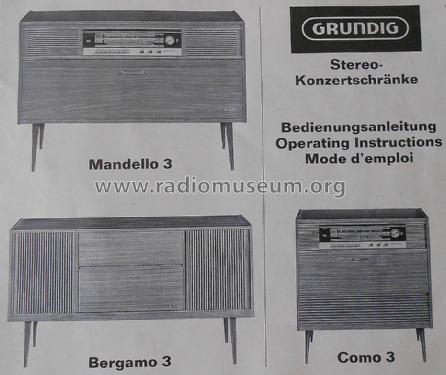

Literature/Schematics (1) -- Original-techn. papers.
