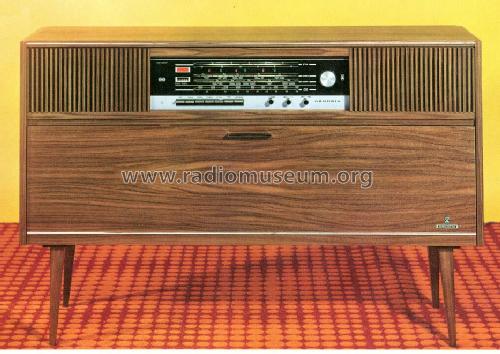

Mandello 4 WE/FM; Grundig Radio- (ID = 486922) Radio
Grundig Radio-: Mandello 4 WE/FM [Radio] ID = 486922 933x662
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mandello 4 WE/FM, Grundig (Radio-Vertrieb, RVF, Radiowerke):

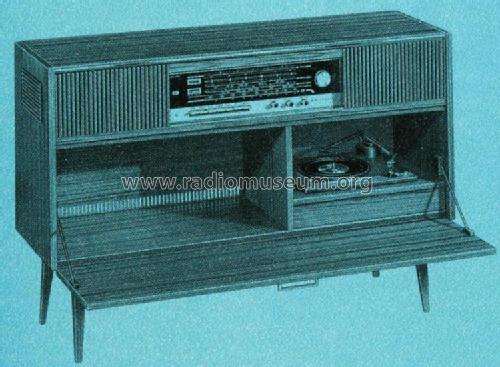

Original prospekt.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker 4 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Mandello 4 WE/FM - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1180 x 800 x 380 mm / 46.5 x 31.5 x 15 inch
Notes Record changer: Automatic 36. Cabinet: light, satin finish; medium/dark, glossy.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
