MBX 10

MBX 10; Grundig Radio- (ID = 2169398) Speaker-P
Use red slider bar for more.
MBX 10; Grundig Radio- (ID = 2169398) Speaker-P

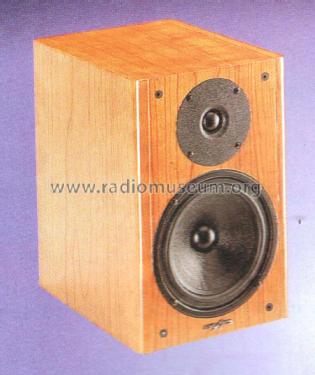

Grundig Radio-: MBX 10 [Speaker-P] ID = 2169398 1397x1660
Select picture or schematic to display from thumbnails on the right and click for download.
For model MBX 10, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Photo Catalogo Grundig

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1997 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: MBX 10 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 185 x 337 x 233 mm / 7.3 x 13.3 x 9.2 inch
Notes

Column Bass Reflex, 2 way nominal power 50 W, musical power 100 W, nominal impedance 4 ohms, 2 Speakers, frequency response 50 Hz-20 kHz, receiver frequency    2000 Hz, liquid volume 10 liters.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Mentioned in Catalogo Grundig 1997, Model Page 88

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
