Melody-Boy 210

Melody-Boy 210; Grundig Radio- (ID = 160940) Radio

Melody-Boy 210; Grundig Radio- (ID = 160941) Radio

Melody-Boy 210; Grundig Radio- (ID = 160942) Radio

Melody-Boy 210; Grundig Radio- (ID = 632783) Radio

Melody-Boy 210; Grundig Radio- (ID = 632784) Radio
Melody-Boy 210; Grundig Radio- (ID = 651733) Radio Melody-Boy 210; Grundig Radio- (ID = 299611) Radio
Melody-Boy 210; Grundig Radio- (ID = 299612) Radio Melody-Boy 210; Grundig Radio- (ID = 651732) Radio
Melody-Boy 210; Grundig Radio- (ID = 651734) Radio Melody-Boy 210; Grundig Radio- (ID = 651735) Radio
Melody-Boy 210; Grundig Radio- (ID = 792682) Radio Melody-Boy 210; Grundig Radio- (ID = 792684) Radio
Melody-Boy 210; Grundig Radio- (ID = 792686) Radio Melody-Boy 210; Grundig Radio- (ID = 792689) Radio
Use red slider bar for more.

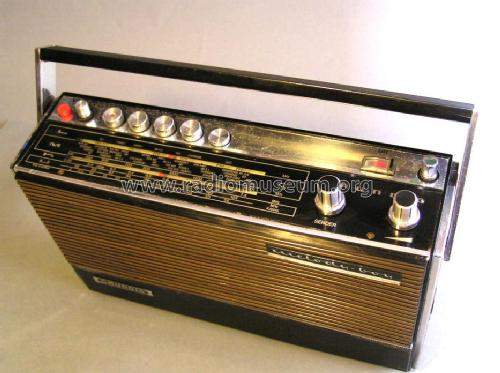

Melody-Boy 210; Grundig Radio- (ID = 651733) Radio
Grundig Radio-: Melody-Boy 210 [Radio] ID = 651733 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melody-Boy 210, Grundig (Radio-Vertrieb, RVF, Radiowerke):

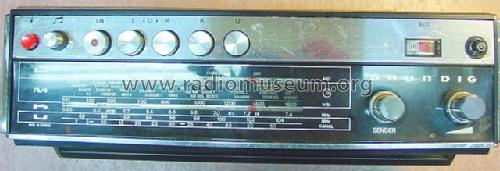

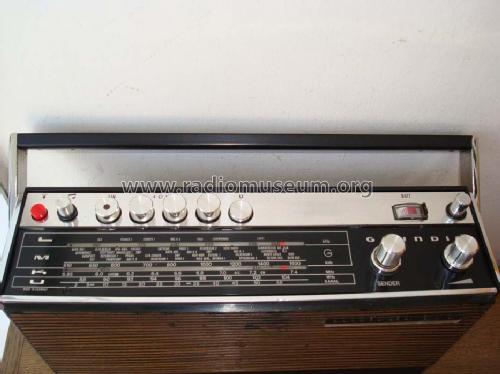

Skala und Bedienertasten

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF185 BF184 BF184 BF184 BF185 BF185 BC108 2N3702 AC187 AC188 1N60 AA116 AA116
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Melody-Boy 210 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
