Melody-Boy 500

Melody-Boy 500; Grundig Radio- (ID = 75808) Radio

Melody-Boy 500; Grundig Radio- (ID = 756236) Radio

Melody-Boy 500; Grundig Radio- (ID = 756239) Radio

Melody-Boy 500; Grundig Radio- (ID = 756242) Radio

Melody-Boy 500; Grundig Radio- (ID = 756241) Radio

Melody-Boy 500; Grundig Radio- (ID = 841645) Radio

Melody-Boy 500; Grundig Radio- (ID = 841646) Radio

Melody-Boy 500; Grundig Radio- (ID = 1934763) Radio
Melody-Boy 500; Grundig Radio- (ID = 652418) Radio Melody-Boy 500; Grundig Radio- (ID = 652412) Radio
Melody-Boy 500; Grundig Radio- (ID = 652416) Radio Melody-Boy 500; Grundig Radio- (ID = 99664) Radio
Melody-Boy 500; Grundig Radio- (ID = 479957) Radio Melody-Boy 500; Grundig Radio- (ID = 652410) Radio
Melody-Boy 500; Grundig Radio- (ID = 652413) Radio Melody-Boy 500; Grundig Radio- (ID = 652414) Radio
Melody-Boy 500; Grundig Radio- (ID = 652415) Radio Melody-Boy 500; Grundig Radio- (ID = 652417) Radio
Use red slider bar for more.

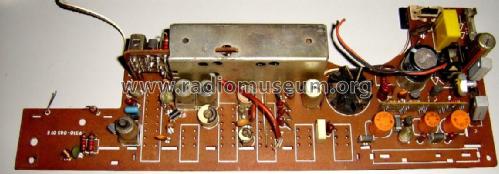

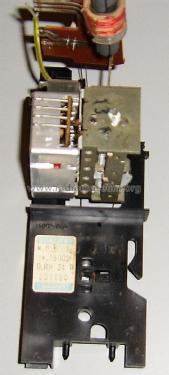

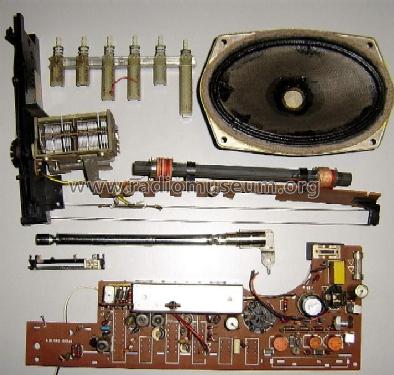

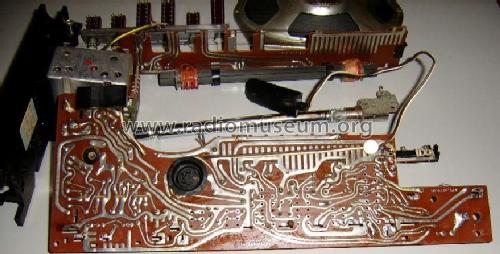

Melody-Boy 500; Grundig Radio- (ID = 652418) Radio
Grundig Radio-: Melody-Boy 500 [Radio] ID = 652418 845x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melody-Boy 500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF314 BF241 BF241 BF240 BF241 BF241 BC309 BC238 BC238 AC187 AC188 AA112 AA112 AA112 BZ102 BZ102
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Melody-Boy 500 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 168 x 66 mm / 11.4 x 6.6 x 2.6 inch
Notes UKW: 87,5 - 108 MHz
KW: 5850 - 16200 kHz
MW: 510 - 1620 kHz
LW: 145 - 260 kHz
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Collectors' prices
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
