Meuble Stéréophonique Locarno F EBF89

Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1774066) Radio Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1774068) Radio
Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1774067) Radio Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1774069) Radio
Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1775140) Radio Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1775141) Radio

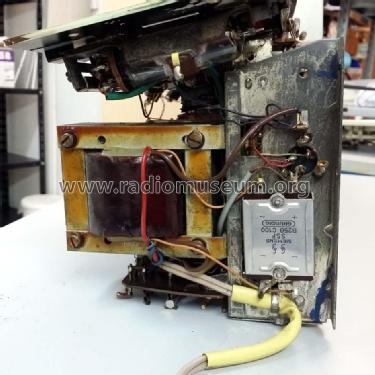

Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1775142) Radio
Use red slider bar for more.
Meuble Stéréophonique Locarno F; Grundig Radio- (ID = 1774066) Radio
Grundig Radio-: Meuble Stéréophonique Locarno F [Radio] ID = 1774066 1125x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meuble Stéréophonique Locarno F EBF89, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL86 EM87 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Meuble Stéréophonique Locarno F [EBF89] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 780 x 820 x 360 mm / 30.7 x 32.3 x 14.2 inch
Notes

Export-Modell für Frankreich, aber mit deutscher Skala.

Siehe auch Grundig Locarno F/St mit EAF801 statt EBF89.
