Micky-Boy 57; Grundig Radio- (ID = 270) Radio

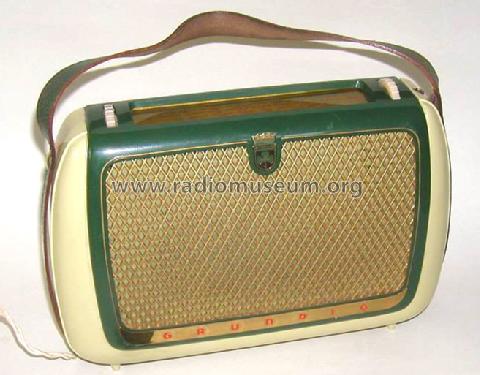

Grundig Radio-: Micky-Boy 57 [Radio] ID = 270 492x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micky-Boy 57, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 220 / 1,5 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Micky-Boy 57 - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 170 x 80 mm / 10.2 x 6.7 x 3.1 inch
Notes auch Mod. E+KM
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 146.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
