Millivoltmeter MV40

Millivoltmeter MV40; Grundig Radio- (ID = 544688) Equipment

Millivoltmeter MV40; Grundig Radio- (ID = 544689) Equipment

Millivoltmeter MV40; Grundig Radio- (ID = 2067439) Equipment

Millivoltmeter MV40; Grundig Radio- (ID = 2067440) Equipment

Millivoltmeter MV40; Grundig Radio- (ID = 2067441) Equipment

Millivoltmeter MV40; Grundig Radio- (ID = 2067442) Equipment
Millivoltmeter MV40; Grundig Radio- (ID = 186518) Equipment Millivoltmeter MV40; Grundig Radio- (ID = 186519) Equipment
Millivoltmeter MV40; Grundig Radio- (ID = 186520) Equipment Millivoltmeter MV40; Grundig Radio- (ID = 186521) Equipment
Millivoltmeter MV40; Grundig Radio- (ID = 1004099) Equipment
Use red slider bar for more.
Millivoltmeter MV40; Grundig Radio- (ID = 186518) Equipment
Grundig Radio-: Millivoltmeter MV40 [Equipment] ID = 186518 933x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Millivoltmeter MV40, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Millivoltmeter MV40 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 298 x 112 x 170 mm / 11.7 x 4.4 x 6.7 inch
Notes

12 Meßbereiche und große Skala, , Frequenzbereich 10 Hz...1 MHz, Mittelwertgleichrichtung, Ausgang für Oszilloskop und Schreiber.

Tischgerät mit Aufstellbügel. Messbereiche: 1...300 mV; 1...300 V; -60...50 dB. Ausgang (1...300 mV/600 Ohm) auf der Rückseite vorhanden.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 516.00 DM
Mentioned in D.E. Ravalico, Strumenti per radiotecnici, XVI Edizione, 1979, pag. 195

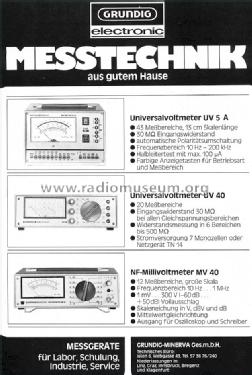

Literature/Schematics (1) (A) Radio Elektronik Schau; Heft 11, 1975 Werbeschaltung
Literature/Schematics (2) - - Manufacturers Literature (Grundig TI 1/1973)

Model page created by Daniel Consales. See "Data change" for further contributors.
