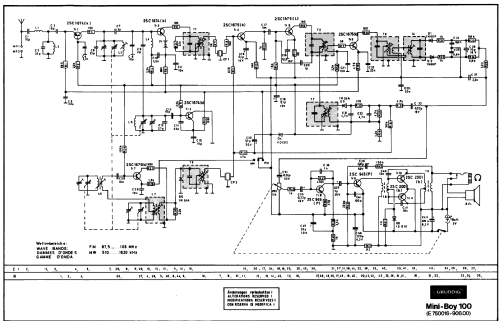

Grundig Radio-: Mini-Boy 100 [Radio] ID = 438504 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini-Boy 100, Grundig (Radio-Vertrieb, RVF, Radiowerke):

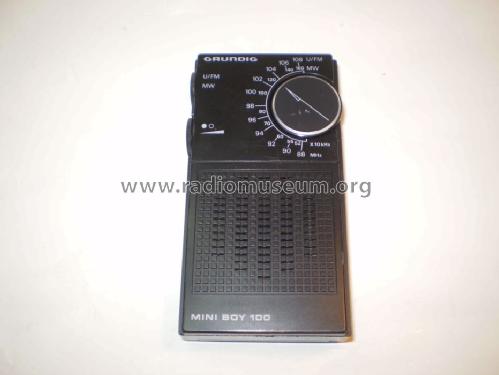

Grundig Mini-Boy 100

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SC1674 2SC1674 2SC1674 2SC1675 2SC1675 2SC1675 2SC1675 2SC945 2SC945 2SC2001 2SC2001 1N60 1N34 1S1211
Main principle Superheterodyne (common)
Tuned circuits 4 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details

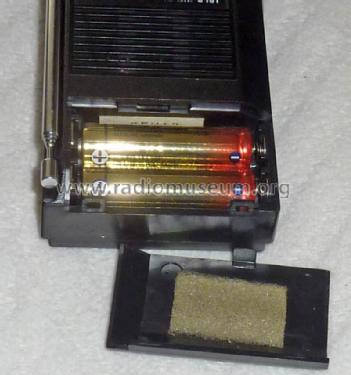

Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker -Loudspeaker incorporated, but system not known. / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Mini-Boy 100 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 66 x 125 x 23 mm / 2.6 x 4.9 x 0.9 inch
Notes Wellenbereiche: AM 510-1620 kHz, FM 87,5-108 MHz; f. AM interne Ferritantenne, f. FM Stabantenne; Transistoren: 3x 2SC1674, 4x 2SC1675, 2x 2SC945, 2x 2SC2001; Dioden: 2x 1N60, 1x 1N34; zusätzliche Verwendung von keramischen ZF-Filtern; Koaxbuchse für Kopfhörer
Source of data -- Original-techn. papers.

Model page created by Sepp Juster. See "Data change" for further contributors.
