For model MT100, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. BF414 BF324 BF241 BF240 BF440 BC415 BC413 BC548 BC558 BF245 BC328 BD679 BD135 TCA420 MC1310 RC4558 TCA530 UAA180 LM324 S0459 BB104 AA119 BA316 1N4148 BZX55 BZX83 ZPD16 ZPY56 CQY85 CQY86 B30C300 B80C1500
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: MT100 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 270 x 60 x 220 mm / 10.6 x 2.4 x 8.7 inch
Notes Grundig MT100; UKW/FM Tuner aus der Mini-Serie.

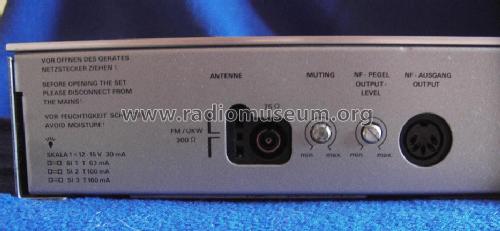

Antenneneingang symmetrisch 300Ω oder unsymmetrisch 75Ω an IEC-Buchse.
Empfangsbereich 87,5...108 MHz.
7 Stationsspeicher und Handabstimmung.
Feldstärke-Anzeige über 13-stellige LED-Kette.
Sendermitten-Anzeige über "Super-Tunoscope".
Schaltbare AFC und Muting, Schwelle rückseitig einstellbar.
NF-Ausgangspegel rückseitig einstellbar.
Net weight (2.2 lb = 1 kg) 2.850 kg / 6 lb 4.4 oz (6.278 lb)
Source of data - - Data from my own collection
Mentioned in -- Original prospect or advert

Model page created by a member from D. See "Data change" for further contributors.
