Music-Boy 160a

Music-Boy 160a; Grundig Radio- (ID = 791174) Radio
Music-Boy 160a; Grundig Radio- (ID = 1061950) Radio Music-Boy 160a; Grundig Radio- (ID = 301533) Radio
Music-Boy 160a; Grundig Radio- (ID = 301534) Radio Music-Boy 160a; Grundig Radio- (ID = 1061953) Radio
Music-Boy 160a; Grundig Radio- (ID = 1061955) Radio Music-Boy 160a; Grundig Radio- (ID = 1165738) Radio
Music-Boy 160a; Grundig Radio- (ID = 1165739) Radio Music-Boy 160a; Grundig Radio- (ID = 1165740) Radio
Music-Boy 160a; Grundig Radio- (ID = 1165741) Radio Music-Boy 160a; Grundig Radio- (ID = 1165742) Radio
Use red slider bar for more.
Music-Boy 160a; Grundig Radio- (ID = 1061950) Radio
Grundig Radio-: Music-Boy 160a [Radio] ID = 1061950 780x535

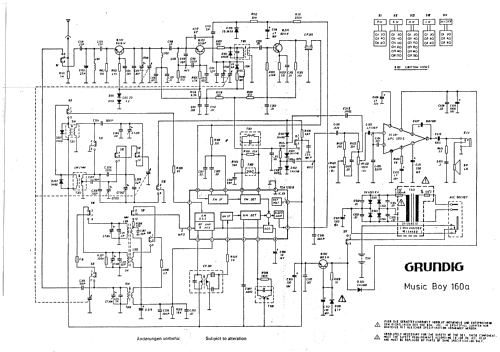

Select picture or schematic to display from thumbnails on the right and click for download.
For model Music-Boy 160a, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: CS9016 CS9018 CS9011 CS9013 TDA1220 µPC1212
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: Music-Boy 160a - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 150 x 60 mm / 10.4 x 5.9 x 2.4 inch
Notes Der Empfänger Music Boy 160a von Grundig ist ein preiswertes Reisegerät. Gefertigt in Malaysia, (Made in Malaysia), zwei Schaltkreise und zwei Piezofilter. Der Service für diese Geräte wurde von Grundig auf Austauschbasis durchgeführt. Typenteile sind deshalb kaum erhältlich.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Andreas Echtner. See "Data change" for further contributors.
