• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128456

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

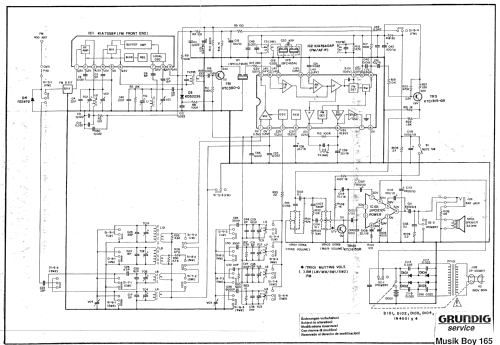

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Music-Boy 165 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 190 x 70 mm / 13 x 7.5 x 2.8 inch

• Notes
• Der Empfänger Musicboy 165 ist ein Reisegerät mit einem eingebauten Netzteil und einer Anschlußbuchse für einen Kopfhörer. KW1 49m-Band und KW2 41-16m-Band. drei IC´s.

• Net weight (2.2 lb = 1 kg)
• 1.060 kg / 2 lb 5.4 oz (2.335 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
