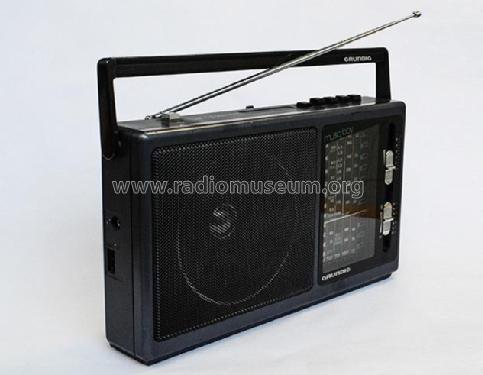

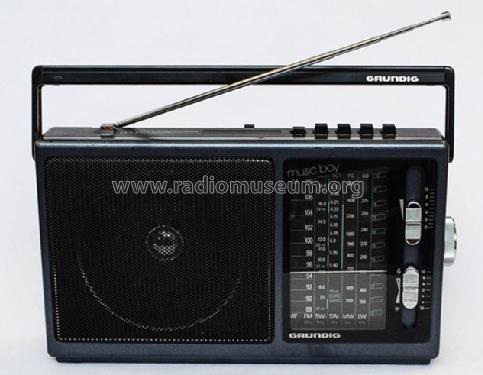

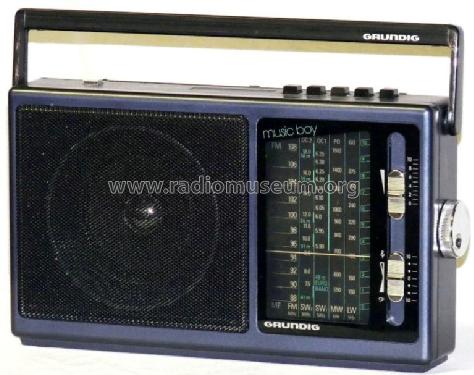

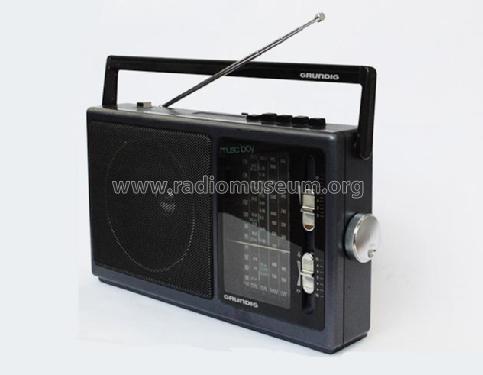

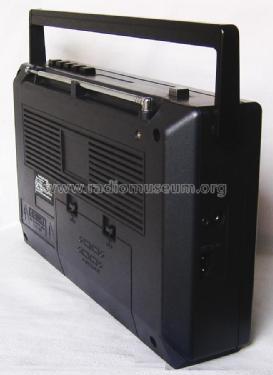

Music-Boy 165a

Music-Boy 165a; Grundig Radio- (ID = 1808981) Radio Music-Boy 165a; Grundig Radio- (ID = 721288) Radio
Music-Boy 165a; Grundig Radio- (ID = 721285) Radio Music-Boy 165a; Grundig Radio- (ID = 721286) Radio
Music-Boy 165a; Grundig Radio- (ID = 721287) Radio Music-Boy 165a; Grundig Radio- (ID = 1626701) Radio
Music-Boy 165a; Grundig Radio- (ID = 1731462) Radio Music-Boy 165a; Grundig Radio- (ID = 1731463) Radio
Music-Boy 165a; Grundig Radio- (ID = 1731465) Radio Music-Boy 165a; Grundig Radio- (ID = 1731467) Radio
Use red slider bar for more.

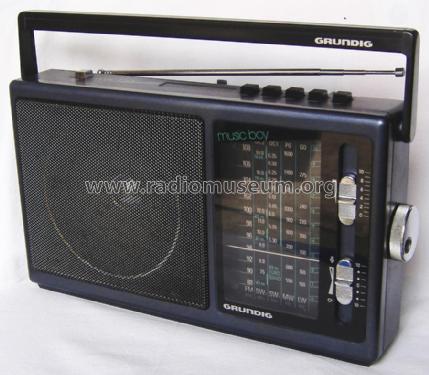

Music-Boy 165a; Grundig Radio- (ID = 1808981) Radio
Grundig Radio-: Music-Boy 165a [Radio] ID = 1808981 900x785
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music-Boy 165a, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1989 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details

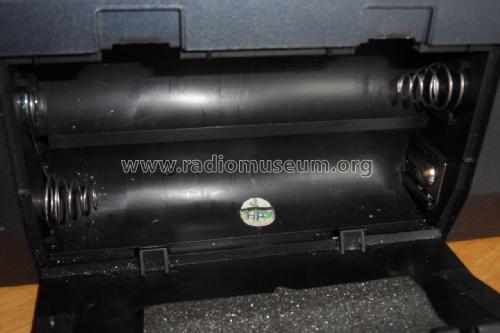

Power type and voltage Line / Batteries (any type) / 220 / D: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Music-Boy 165a - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 185 x 70 mm / 12.4 x 7.3 x 2.8 inch
Notes 4 tlg. Teleskopantenne (80 cm), Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Made by Grundig in Malaysia
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Collectors' prices

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5975 models, 5183 with images and 4027 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
