• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 2002 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279829

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

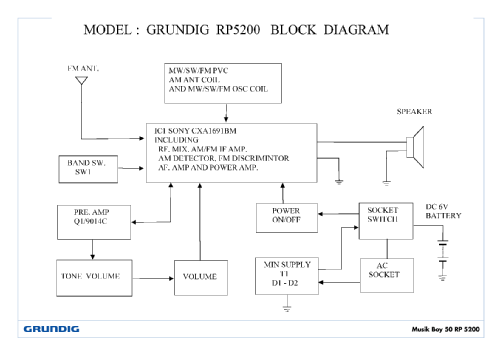

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage

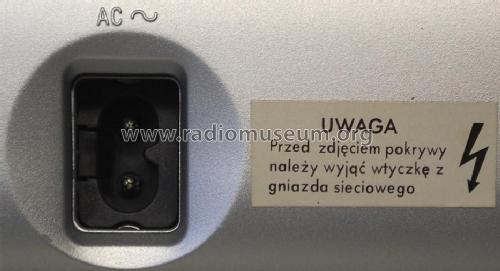

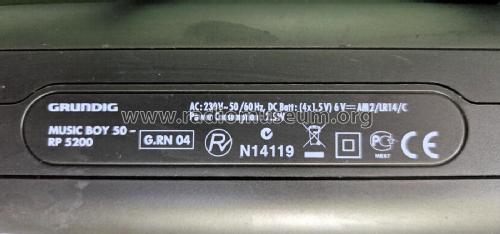

• Line / Batteries (any type) / 230 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

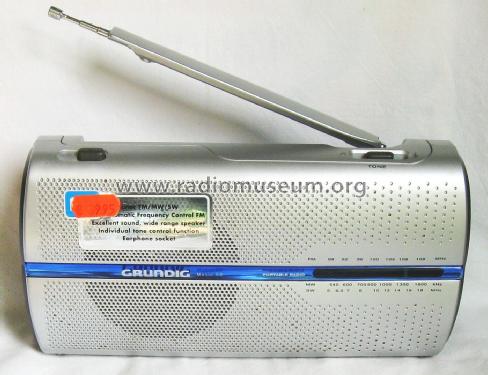

• Model: Music- Boy 50 RP-5200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 130 x 65 mm / 9.4 x 5.1 x 2.6 inch

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
