• Year
  • 1967
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 92696
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

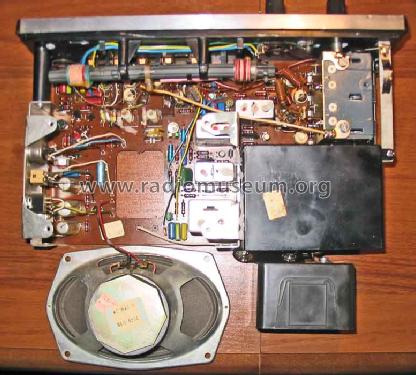

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)

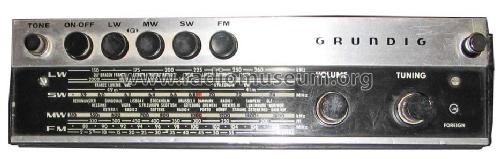

  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 2 × 4,5 Volt

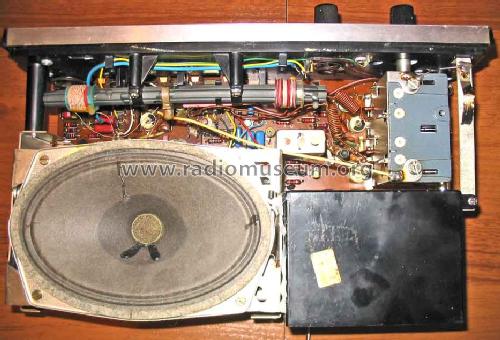

  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org

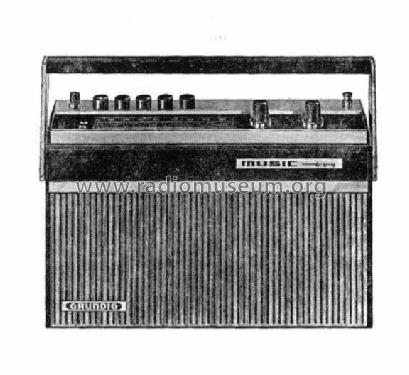

  • Model: Music-Boy 208a - Grundig Radio-Vertrieb, RVF,

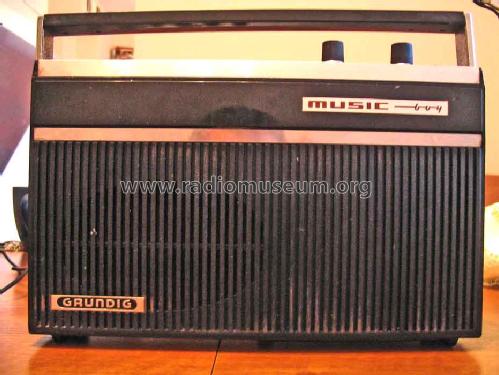

  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 275 x 170 x 70 mm / 10.8 x 6.7 x 2.8 inch
  • Notes
  • UKW 88 - 108 MHz.

    External power unit TN12A available. Loudspeaker 5,5" × 3,75".
    Finish in wood appearance.

    Siehe auch die Exportversion Transistor 501.

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
