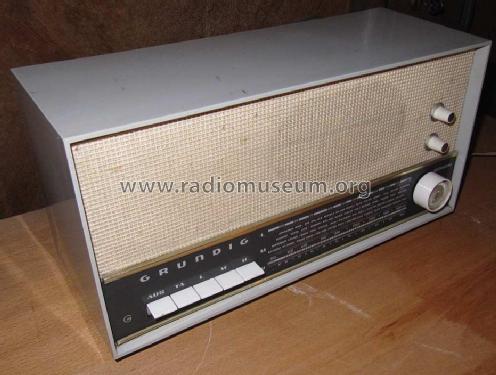

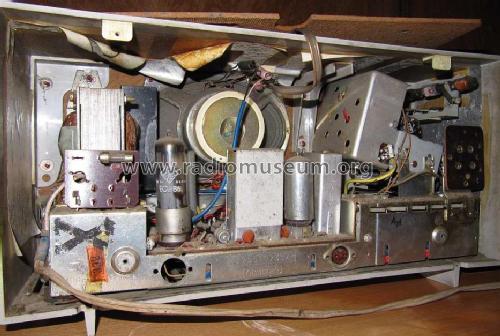

Musikgerät 3010-P

Musikgerät 3010-P; Grundig Radio- (ID = 82088) Radio
Musikgerät 3010-P; Grundig Radio- (ID = 1008524) Radio Musikgerät 3010-P; Grundig Radio- (ID = 163110) Radio
Musikgerät 3010-P; Grundig Radio- (ID = 1008533) Radio Musikgerät 3010-P; Grundig Radio- (ID = 1084636) Radio
Musikgerät 3010-P; Grundig Radio- (ID = 1084639) Radio Musikgerät 3010-P; Grundig Radio- (ID = 1084641) Radio
Musikgerät 3010-P; Grundig Radio- (ID = 1084643) Radio Musikgerät 3010-P; Grundig Radio- (ID = 1084648) Radio
Musikgerät 3010-P; Grundig Radio- (ID = 1097780) Radio Musikgerät 3010-P; Grundig Radio- (ID = 1097781) Radio
Use red slider bar for more.
Musikgerät 3010-P; Grundig Radio- (ID = 1008524) Radio
Grundig Radio-: Musikgerät 3010-P [Radio] ID = 1008524 933x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 3010-P, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Musikgerät 3010-P - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 200 x 150 mm / 15 x 7.9 x 5.9 inch
Notes Dioden: 2× OA172.
Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Price in first year of sale 235.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
