Musikgerät 3030M Nussbaum

Musikgerät 3030M; Grundig Radio- (ID = 73259) Radio

Musikgerät 3030M; Grundig Radio- (ID = 73260) Radio
Musikgerät 3030M; Grundig Radio- (ID = 407056) Radio Musikgerät 3030M; Grundig Radio- (ID = 407058) Radio
Musikgerät 3030M; Grundig Radio- (ID = 407061) Radio Musikgerät 3030M; Grundig Radio- (ID = 244135) Radio
Musikgerät 3030M; Grundig Radio- (ID = 244136) Radio Musikgerät 3030M; Grundig Radio- (ID = 407051) Radio
Musikgerät 3030M; Grundig Radio- (ID = 407054) Radio Musikgerät 3030M; Grundig Radio- (ID = 1097793) Radio
Musikgerät 3030M; Grundig Radio- (ID = 1097794) Radio
Use red slider bar for more.
Musikgerät 3030M; Grundig Radio- (ID = 407056) Radio
Grundig Radio-: Musikgerät 3030M [Radio] ID = 407056 933x361

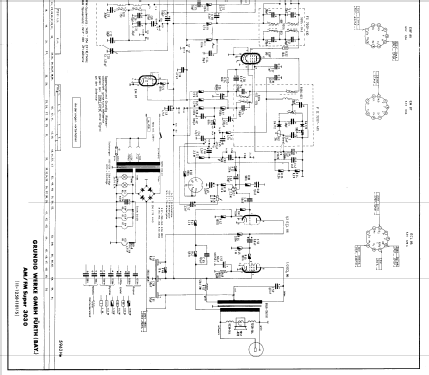

Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 3030M Nussbaum, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM87
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Musikgerät 3030M [Nussbaum] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 230 x 150 mm / 23.2 x 9.1 x 5.9 inch
Notes Dioden: 2× OA172.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 329.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
