Musikgerät 98M

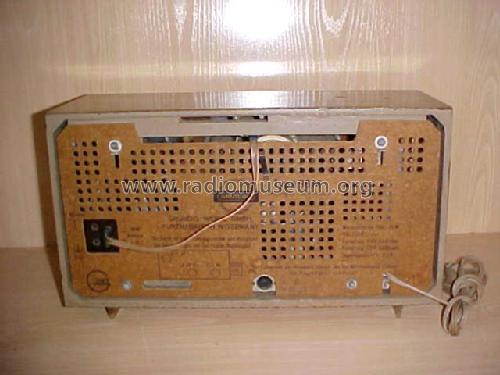

Musikgerät 98M; Grundig Radio- (ID = 70846) Radio

Musikgerät 98M; Grundig Radio- (ID = 51609) Radio

Musikgerät 98M; Grundig Radio- (ID = 70847) Radio

Musikgerät 98M; Grundig Radio- (ID = 70849) Radio
Musikgerät 98M; Grundig Radio- (ID = 2543670) Radio Musikgerät 98M; Grundig Radio- (ID = 2543687) Radio

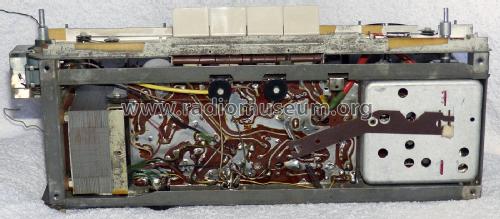

Musikgerät 98M; Grundig Radio- (ID = 2543677) Radio Musikgerät 98M; Grundig Radio- (ID = 2543688) Radio

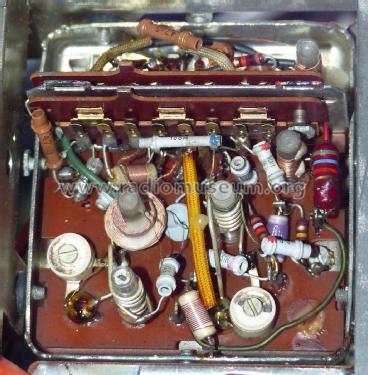

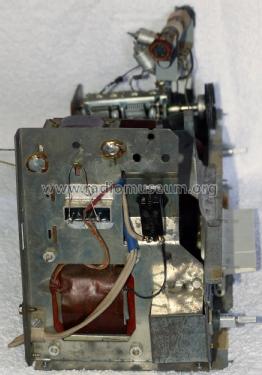

Musikgerät 98M; Grundig Radio- (ID = 2543689) Radio Musikgerät 98M; Grundig Radio- (ID = 2543690) Radio
Musikgerät 98M; Grundig Radio- (ID = 2522674) Radio Musikgerät 98M; Grundig Radio- (ID = 1967791) Radio

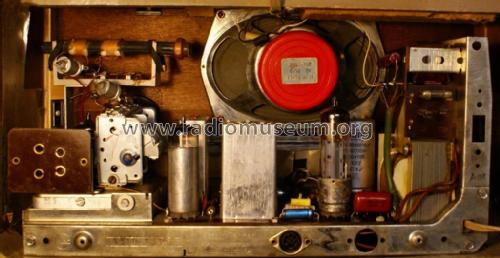

Musikgerät 98M; Grundig Radio- (ID = 1967793) Radio Musikgerät 98M; Grundig Radio- (ID = 1967792) Radio
Use red slider bar for more.
Musikgerät 98M; Grundig Radio- (ID = 2543670) Radio

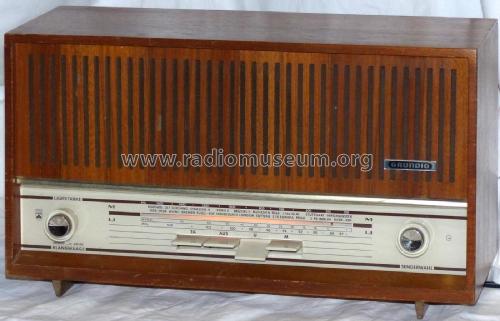

Grundig Radio-: Musikgerät 98M [Radio] ID = 2543670 1400x899
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 98M, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Gerät ist eingeschaltet.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECC85 EAF801 ECL86
Semiconductors (the count is only for transistors) AA119 AA119 B250C100
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Reflex
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Musikgerät 98M - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 375 x 210 x 145 mm / 14.8 x 8.3 x 5.7 inch
Notes

UKW-Vorstufe wird als 1.ZF Stufe in Reflexschaltung verwendet.
Bei AM additive Triodenmischung mit ECC85.

The design of this radio was the responsibility of RM member and frequent contributer Hans Knoll, in 1963.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 290.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965

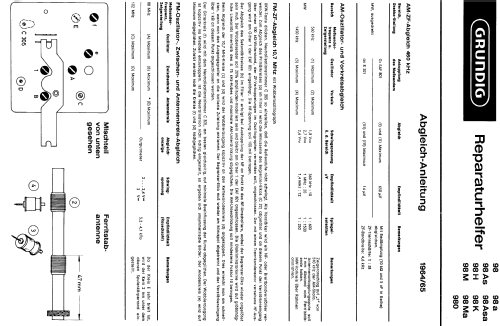

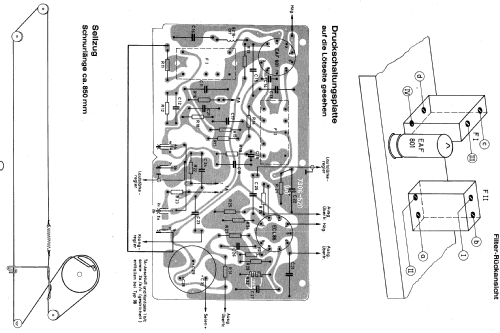

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6054 models, 5264 with images and 4077 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
