MW70-2700 Dolby Ch= CUC2059

MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935896) Television MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935897) Television
MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935898) Television MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935899) Television

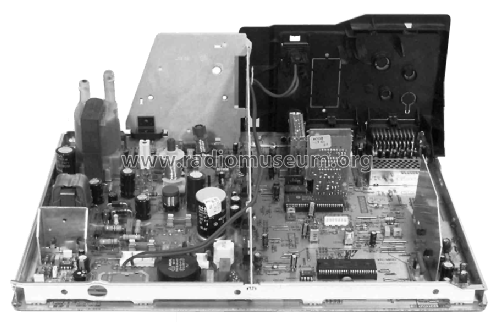

MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935902) Television MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935905) Television
Use red slider bar for more.
MW70-2700 Dolby Ch= CUC2059; Grundig Radio- (ID = 1935896) Television
Grundig Radio-: MW70-2700 Dolby Ch= CUC2059 [Television] ID = 1935896 1362x860
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW70-2700 Dolby Ch= CUC2059, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 2000 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: W66EGV023X015
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker 2 Loudspeakers
Power out 20 W (40 W max.)
from Radiomuseum.org Model: MW70-2700 Dolby Ch= CUC2059 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Console with any shape - in general
Dimensions (WHD) 800 x 550 x 550 mm / 31.5 x 21.7 x 21.7 inch
Notes

Bildschirmdiagonale 70 cm (28"), Format 16:9, Black Line
Sichtbares Bild: 66 cm
Bildwechselfrequenz: 50 Hz
Speicherplätze: 99 TV und 2 AV
Farbsystem: PAL und NTSC mit 4,43 MHz
Stereosystem: A2, Nicam 5,85 MHz
2 x SCART Anschluss mit je FBAS Ein-/Ausgang
SBAS Eingang und RGB Eingang
Leistungsaufnahme 90 Watt, Standby 6 Watt
Infrarot Fernbedienung

Net weight (2.2 lb = 1 kg) 42 kg / 92 lb 8.2 oz (92.511 lb)

Model page created by Wilfried Hofmüller. See "Data change" for further contributors.
