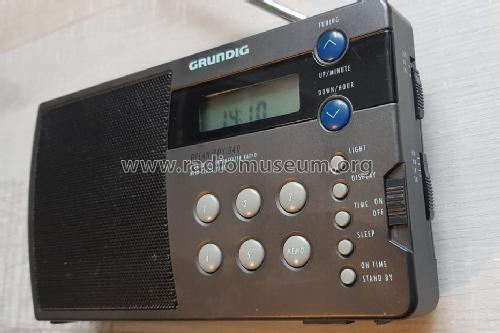

Ocean-Boy 340

Ocean-Boy 340; Grundig Radio- (ID = 998195) Radio Ocean-Boy 340; Grundig Radio- (ID = 1778520) Radio
Ocean-Boy 340; Grundig Radio- (ID = 2364103) Radio Ocean-Boy 340; Grundig Radio- (ID = 2364104) Radio
Ocean-Boy 340; Grundig Radio- (ID = 2364105) Radio Ocean-Boy 340; Grundig Radio- (ID = 2519917) Radio
Ocean-Boy 340; Grundig Radio- (ID = 2519918) Radio Ocean-Boy 340; Grundig Radio- (ID = 2519919) Radio
Use red slider bar for more.
Ocean-Boy 340; Grundig Radio- (ID = 998195) Radio
Grundig Radio-: Ocean-Boy 340 [Radio] ID = 998195 933x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ocean-Boy 340, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1994 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 & AAA: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Ocean-Boy 340 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 110 x 40 mm / 7.5 x 4.3 x 1.6 inch
Notes

Empfindlichkeit schaltbar für Nah- und Fernempfang, Kopfhörerbuchse, 6V-DC-Buchse, Uhr mit Timer und Sleep, 5 Stationstasten pro Band, Tastensperre.

Die 4 AA-Batterien sind für das Rundfunkteil, die 2 AAA-Batterien für die Uhr.

Net weight (2.2 lb = 1 kg) 0.450 kg / 0 lb 15.9 oz (0.991 lb)
Source of data - - Data from my own collection

Model page created by Christian Enzesberger. See "Data change" for further contributors.
