Oszilloskop GO15D

Oszilloskop GO15D; Grundig Radio- (ID = 2058186) Equipment
Oszilloskop GO15D; Grundig Radio- (ID = 437687) Equipment Oszilloskop GO15D; Grundig Radio- (ID = 1014346) Equipment
Use red slider bar for more.
Oszilloskop GO15D; Grundig Radio- (ID = 437687) Equipment

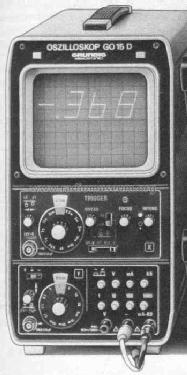

Grundig Radio-: Oszilloskop GO15D [Equipment] ID = 437687 350x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszilloskop GO15D, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Funkschau 4.1979

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1979 ? Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszilloskop GO15D - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Einkanal, 15 MHz Bandbreite, TV-Bild und Zeilen-Triggerung, Messfläche 8 x 10 cm, Zeitmaßstab 100 ms/cm...0,1 µs/cm, 5 mV/cm, eingebautes Multimeter Volt 1 bis 1000, Ampere 1 bis 1000 mA, Widerstand 1 bis 1 kOhm.
Collectors' prices
Mentioned in Funkschau (4.1979)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
