For model P37-540 text Ch= CUC5301, Grundig Austria GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Grundig Austria GmbH; Wien
Year: 1993 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A34JLL90X23
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: P37-540 text Ch= CUC5301 - Grundig Austria GmbH; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 390 x 0 mm / 13.4 x 15.4 x 0 inch
Notes

Grundig P37-540 text; Chassis: CUC5301

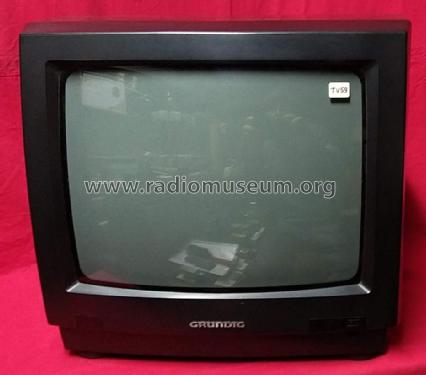

  • 37 cm Color TV
  • CCIR B/G VHF/UHF/Kabeltuner
  • OSD Texteinblendung in 9 Sprachen
  • Sleeptimer
  • 49 Programmplätze
  • AV
  • Automatic Channel Programming ACP
  • Programm-Sperre (Kinder-Sicherung)
  • Tele-/Videotext
  • 4 W Musikleistung
  • EURO AV Buchse
  • eingebaute, schwenkbare Teleskopantenne
  • made in Austria

Model page created by a member from A. See "Data change" for further contributors.
