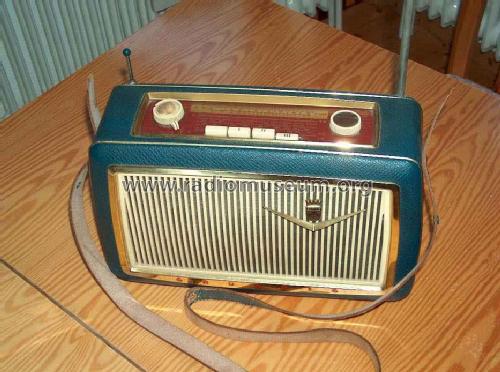

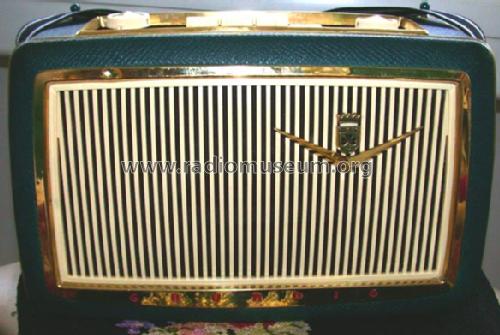

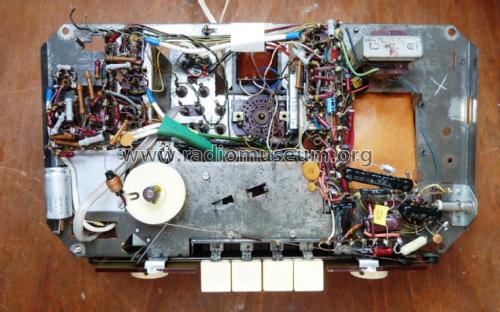

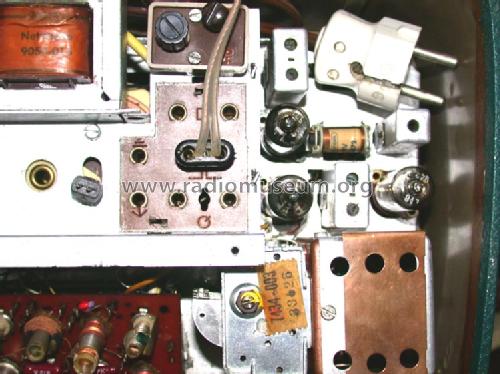

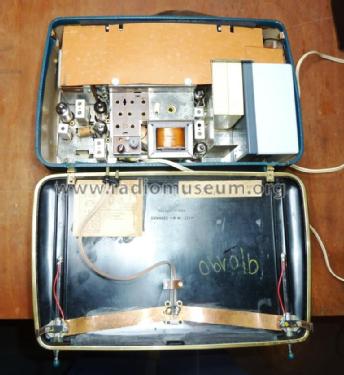

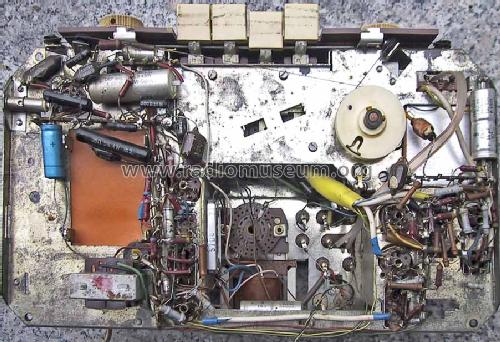

Party-Boy 1958

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2109

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• DF97 DF97 DK96 DF97 DF97 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 117; 220 / Deac D2 & 100 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.15 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Party-Boy [1958] - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 200 x 120 mm / 13 x 7.9 x 4.7 inch

• Notes
• Anschluss für Autobatterie zum Laden der Deac-Zelle.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 298.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 4

• Other Models

• Here you find 6196 models, 5420 with images and 4191 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
