Party-Boy 100

Party-Boy 100; Grundig Radio- (ID = 478619) Radio

Party-Boy 100; Grundig Radio- (ID = 478620) Radio

Party-Boy 100; Grundig Radio- (ID = 478621) Radio

Party-Boy 100; Grundig Radio- (ID = 478622) Radio

Party-Boy 100; Grundig Radio- (ID = 478623) Radio

Party-Boy 100; Grundig Radio- (ID = 478624) Radio

Party-Boy 100; Grundig Radio- (ID = 478625) Radio
Party-Boy 100; Grundig Radio- (ID = 755402) Radio Party-Boy 100; Grundig Radio- (ID = 1889444) Radio
Party-Boy 100; Grundig Radio- (ID = 1889445) Radio Party-Boy 100; Grundig Radio- (ID = 1889446) Radio
Party-Boy 100; Grundig Radio- (ID = 1889447) Radio Party-Boy 100; Grundig Radio- (ID = 1889448) Radio
Use red slider bar for more.
Party-Boy 100; Grundig Radio- (ID = 755402) Radio
Grundig Radio-: Party-Boy 100 [Radio] ID = 755402 500x376
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party-Boy 100, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Bild von Wolfgang Bauer.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; 4 x 1,5 Volt

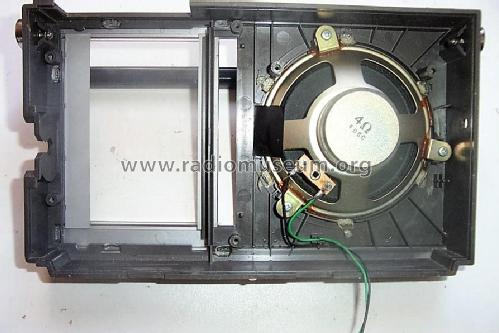

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Party-Boy 100 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 150 x 50 mm / 10.2 x 5.9 x 2 inch

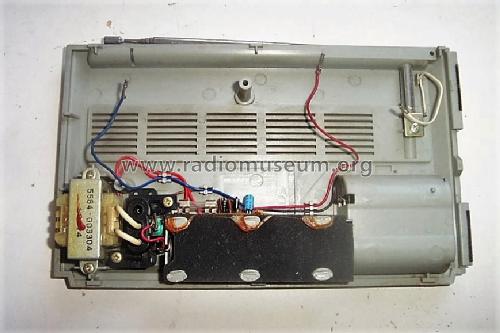

Notes Der Party-Boy 100 ist ein Reiseempfänger mit einem eingebauten Netzteil. Eine Anschlußbuchse für einen Kopfhörer ist eingebaut. 1 IC: AN7218
Keramikschwinger für AM-ZF und FM-ZF.
Price in first year of sale 178.00 HFL
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6070 models, 5287 with images and 4087 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
