Party-Boy 110

Party-Boy 110; Grundig Radio- (ID = 843359) Radio
Party-Boy 110; Grundig Radio- (ID = 1808125) Radio Party-Boy 110; Grundig Radio- (ID = 779333) Radio
Party-Boy 110; Grundig Radio- (ID = 779334) Radio Party-Boy 110; Grundig Radio- (ID = 779335) Radio
Party-Boy 110; Grundig Radio- (ID = 779336) Radio Party-Boy 110; Grundig Radio- (ID = 779337) Radio
Party-Boy 110; Grundig Radio- (ID = 779338) Radio Party-Boy 110; Grundig Radio- (ID = 1308040) Radio
Party-Boy 110; Grundig Radio- (ID = 1308041) Radio Party-Boy 110; Grundig Radio- (ID = 1808127) Radio
Use red slider bar for more.

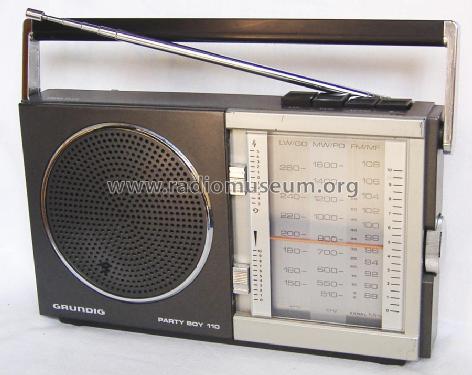

Party-Boy 110; Grundig Radio- (ID = 1808125) Radio
Grundig Radio-: Party-Boy 110 [Radio] ID = 1808125 900x715
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party-Boy 110, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1983 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF324 BF451 BF451 BF451 TDA1220 TBA820
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/ 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Party-Boy 110 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 150 x 52 mm / 10.2 x 5.9 x 2 inch
Notes Control volume and tone slider switch, on - off switch, no retractable telescopic antenna. FM from 88 to 108. Jack for headphones; 12 cm ferrite antenna, loudspeaker Hokutone, nom. 1.5, max 3 W.
Controlli di volume e tono a cursore, tasto di accensione, antenna telescopica non a scomparsa, modulazione di frequenza 88 - 108 MHz; presa jack per auricolare, antenna in ferrite di 12 cm, altoparlante Hokutone, nom 1,5, max 3 W. 2 ICs TDA1220B and TBA820M
Net weight (2.2 lb = 1 kg) 1.065 kg / 2 lb 5.5 oz (2.346 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Schematic

Model page created by Felice Nicolini. See "Data change" for further contributors.
