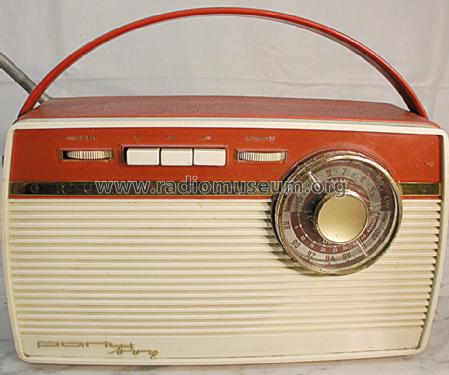

Party-Boy Transistor 201

Party-Boy Transistor 201; Grundig Radio- (ID = 92089) Radio

Party-Boy Transistor 201; Grundig Radio- (ID = 92090) Radio
Party-Boy Transistor 201; Grundig Radio- (ID = 1308187) Radio Party-Boy Transistor 201; Grundig Radio- (ID = 1378332) Radio
Party-Boy Transistor 201; Grundig Radio- (ID = 1378334) Radio Party-Boy Transistor 201; Grundig Radio- (ID = 1378336) Radio
Party-Boy Transistor 201; Grundig Radio- (ID = 213854) Radio Party-Boy Transistor 201; Grundig Radio- (ID = 1378335) Radio
Party-Boy Transistor 201; Grundig Radio- (ID = 126667) Radio Party-Boy Transistor 201; Grundig Radio- (ID = 213853) Radio
Party-Boy Transistor 201; Grundig Radio- (ID = 1378333) Radio
Use red slider bar for more.
Party-Boy Transistor 201; Grundig Radio- (ID = 1308187) Radio
Grundig Radio-: Party-Boy Transistor 201 [Radio] ID = 1308187 933x791
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party-Boy Transistor 201, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC171 OC170 OC170 OC170 OC75 OC75 OC74 OC74 OA90 OA90 SFD107 E25C5 E25C5
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Party-Boy Transistor 201 - Grundig Radio-Vertrieb, RVF,
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 160 x 90 mm / 10.6 x 6.3 x 3.5 inch
Notes

Für UKW: Selbstschwingende Mischstufe, keine Vorstufe. Mitlaufender (abgestimmter) Saugkreis der die Abstrahlung der Oszillator-Grundwelle über die Antennen minimiert.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 229.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1961/62 (S.235)
