Party-Boy 210

Party-Boy 210; Grundig Radio- (ID = 720282) Radio Party-Boy 210; Grundig Radio- (ID = 720283) Radio
Party-Boy 210; Grundig Radio- (ID = 720665) Radio Party-Boy 210; Grundig Radio- (ID = 720667) Radio
Use red slider bar for more.

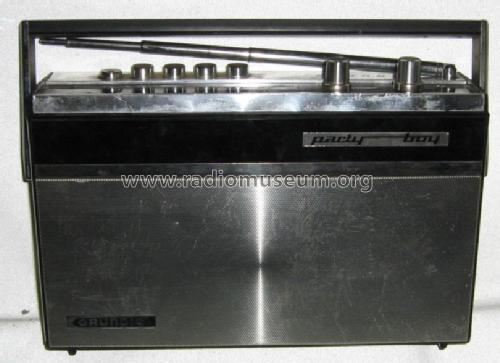

Party-Boy 210; Grundig Radio- (ID = 720282) Radio
Grundig Radio-: Party-Boy 210 [Radio] ID = 720282 810x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party-Boy 210, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF185 BF185 BF185 BF184 BF184 BC108 2N3702 AC187 AC188
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 or 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Party-Boy 210 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 185 x 70 mm / 11.2 x 7.3 x 2.8 inch
Notes Grundig Party-Boy 210;
UKW/FM 87,5...108 MHz, Tonschalter.
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Mike Izycky. See "Data change" for further contributors.
